PE/PEX Jaw Crusher

PE/PEX Jaw Crusher

Capacity:1-1100 T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Many industries such as mining, smelting, building materials, highways, railways, water conservancy and chemical industry.

Applicable Material

Limestone, granite, marble, basalt, iron ore, river pebble, shale, lapis, coal, cobblestone, construction waste,etc.

Overview


This series product adopts cast steel rack and swing jaw which has high strength and long life. Medium and large scale jaw many characters like big crushing ratio, uniform particle size, crusher designed by VANGUARD has world-class capacity with simple structure, reliable working performance easy maintenance, low operation cost and so on. This jaw crusher could be widely used in mining, smelting building material, highway, railway water conservancy and chemical industries, which can crush varieties of materials with a compressive strength no more than 320MPa. The PE series is used for coarse crushing while PEX series for medium and fine crushing.

Features

Compact Structure and Unique Design

Unique jaw head structure and perfect seal lengthen bearing’s service life. Unique flywheel design reduces the shock of machine to guarantee stable operation.

Adjustment Device of Discharge Port

Spacer type discharge port adjustment device is very reliable, wide range of adjusting, flexibility of the machine is increased.

Energy-efficient & Long Service Life

Deep crushing cavity, no dead corner. Input size range and capacity are increased; big crushing radio, even final product, new oil-way design can match up with oil pump, easier and effective operation.

Mono-Block Cast & High Safety Factor

Adopting mono-block cast and and new assembly technology could make it match up with rack perfectly, radial strength is increased.



Learn More About PE/PEX Jaw Crusher

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves. So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.

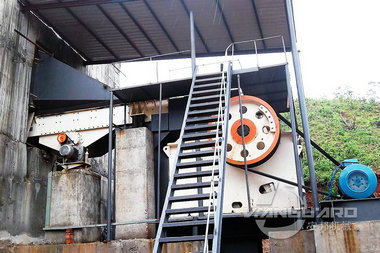

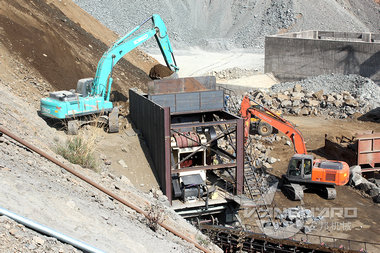

Product Album

Specifications - Technical Data

Model

Size of Feed

Opening(mm)

Max.Feeding Size

(mm)

Adjustable Size of

Discharge Opening(mm)

Capacity

(t/h)

Power

(kW)

PE150×250

150×250

125

10-40

1-3

5.5

PE150×750

150×750

125

18-48

8-25

15

PE250×400

250×400

210

20-60

5-20

15

PE400×600

400×600

340

40-100

16-65

30

PE500×750

500×750

425

50-100

45-100

55

PE600×900

600×900

500

65-160

60-160

75

PE750×1060

750×1060

630

80-160

110-320

110

PE800×1060

800×1060

640

130-190

130-330

110

PE900×1200

900×1200

750

95-210

220-450

132

PE1000×1200

1000×1200

850

200-300

280-560

160

PE1200×1500

1200×1500

1020

150-300

400-800

220

PE1500×1800

1500×1800

1200

210-360

520-1100

280

PEX250×750

250×750

210

25-60

13-35

22

PEX250×1000

250×1000

210

25-60

16-52

30

PEX250×1200

250×1200

210

25-60

20-65

37

PEX300×1300

300×1300

250

20-90

30-105

55
