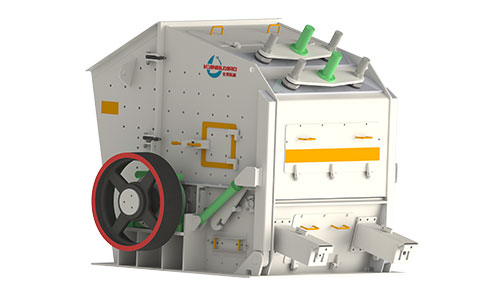

PF/PFV Series Impact Crusher

PF/PFV Series Impact Crusher

Capacity:15-350T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Hydropower, highway, artificial aggregate, ore crushing and other industries;

Applicable Material

Limestone, granite, marble, basalt, iron ore, river pebble, shale, lapis, coal, cobblestone, construction waste,etc.

Overview

Dealing with the material with the side length below 500mm, not more than 250MPa anti-pressure strength, Impact crusher can be widely used in crushing the coarse, medium, and fine material (e.g. granite, limestone, concrete). During the process of operating, the rotor at high speed will be brought along by the electric motor. The material will be impacted by the flat hammer to be crushed, and then be countered to the liner for the second crushing, then be discharged through the discharge opening.

Features

High Chromium Plate Hammer

Keyless connection makes maintenance easier and economical; machine has strong shock resistance and abrasion resistance and strong impact.

Feed Port

Big feed port, high crushing cavity, high resistance againest material, less stone powder generated.

Hydraulic Push Rod

All function of crushing, high capacity, machine element gets less abrasion, high comprehensive benefits.

Rotor

Compact structure, strong rigidity, high rotational inertia of rotor.



Learn More About PF/PFV Series Impact Crusher

This machine is a kind of crushing machinery technology that uses impact energy to crush materials. When the material enters the plate hammer action zone, it is broken by the high-speed impact of the plate hammer, and is thrown to the counterattack device installed above the rotor to break again, and then from the counterattack liner back to the plate hammer action zone to break again. This process is repeated until the material is broken to the desired particle size and discharged from the lower part of the machine. Adjusting the clearance between the counterattack rack and the rotor rack can achieve the purpose of changing the particle size and shape of the material. The machine adopts spring safety device after counterattack plate. When the non-broken material enters the crushing chamber, the front and rear counterattack shelves retreat and the non-broken material is discharged from the machine.

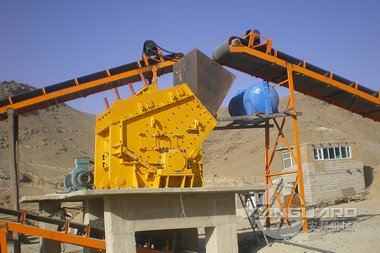

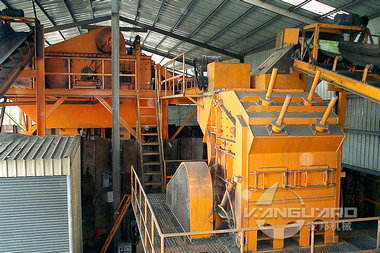

Product Album

Specifications - Technical Data

​Model

Specification

Feeding Port Size (mm)

Max. Processing Size (mm)

Capacity (t/h)

Modelof Motor

Power(kW)

PF-1007

φ1000×700

400×730

≤250

15-60

Y250M-6

37

PF-1010

φ1000×1050

400×1080

≤300

50-90

Y315S-6

75

PF-1210

φ1250×1050

400×1080

≤300

70-130

Y315L1-6

110

PF-1212

φ1250×1200

400×1250

≤300

70-140

Y315L2-6

132

PF-1214

φ1250×1400

400×1430

≤300

90-180

Y315L2-6

132

PF-1315

φ1300×1500

680×1520

≤350

120-250

Y2-355M2-6

200

PF-1320

φ1300×2000

680×1570

≤500

160-350

Y2-355M2-6

280

PFV-1010

φ1000×1050

400×1030

≤200

35-60

Y315S-6

75

PFV-1210

φ1250×1050

570×1030

≤250

70-140

Y315L1-6

110

PFV-1214

φ1250×1400

570×1430

≤250

90-190

Y315L2-6

160

PFV-1315

φ1300×1500

625×1530

≤300

150-280

Y2-355M2-6

200

PFV-1380

φ1300×1800

625×1830

≤300

220-350

Y2-355M2-6

250

PFV-1415

φ1400×1500

800×1530

≤300

280-350

Y2-355M2-6

250
