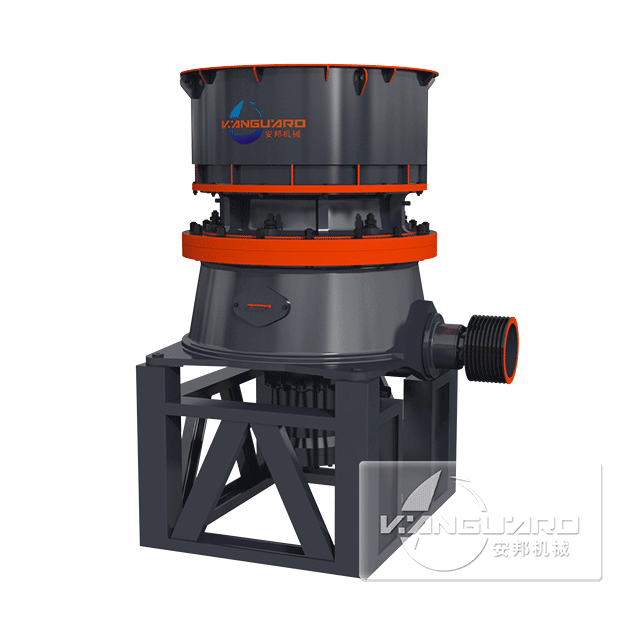

CS/CH Series Single-Cylinder Cone Crusher

CS/CH Series Single-Cylinder Cone Crusher

Capacity:15-2200 T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

In metallurgy, construction, hydropower, transportation, chemical industry and building materials industry.

Applicable Material

Limestone, granite, marble, basalt, iron ore, river pebble, shale, lapis, coal, cobblestone, construction waste, etc.

Overview

In order to meet the needs of market development, our company develops an efficient fine crusher, single cylinder hydraulic cone crusher. With the concise and compact structure, it can adjust discharge gate directly, prevent iron, and clear the cavity by the unique design of cylinder structure at the bottom. Single cylinder hydraulic cone crusher represents world's most advanced crushing technology, widely used in metal and non-metallic mineral, cement, sand and metallurgical industries for crushing, fine crushing and ultra fine crushing. It has many advantages like high efficiency crushing, low production cost, easy to maintain, good product shape, suitable for fine crushing and ultra fine crushing of minerals. It can do well in crushing the material to the required size to meet the production needs of customers.

Features

Higher Reliability

Heavy-duty designed main frame with first class steel. High manganese composite material liner, more hard-wearing. Huge diameter main shaft, more sturdy and durable.

Less Production Cost

Vanguard has long term experience and advanced metallurgy technology in crusher liner, that can reduce the crusher unit wearing. The optional automatic control system help to feed fully and to adjust the liner gap automatically during the crusher running, and improved the crusher working efficiency, then the unit production cost will be much less.

Wider Application

This series cone crusher has bigger feeding port size, then it is suitable for various crushing plant for best capacity, and it is widely used in medium and superfine crushing, stationary and mobile crushing plant. Improved crushing speed, eccentric arm (stroke) and cavity design can bring the higher capacity and better products.



Learn More About CS/CH Series Single-Cylinder Cone Crusher

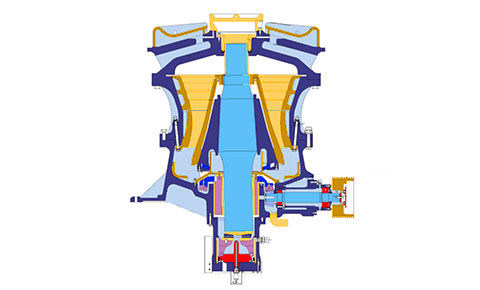

The working part of the cone crusher is the two truncated cone is a cone, one is a fixed cone, and the other is a moving cone. The fixed cone is stationary and part of the frame. The lower end of the moving cone is movably inserted into the eccentric bushing. Therefore, the central axis of the fixed cone intersects with the central axis of the moving cone at an oblique angle. When the central axis of the moving cone rotates around the central axis of the fixed cone, the moving cone deflects along the inner surface of the fixed cone. In the section where the moving cone is close to the fixed cone, the material is squeezed, impacted and bent by the moving cone, and becomes a crushing chamber; in the place where the moving cone deviates from the fixed cone, the crushed material is discharged from the bottom of the cone under the action of self-weight and becomes a discharge port, and the material is loaded from the inlet.

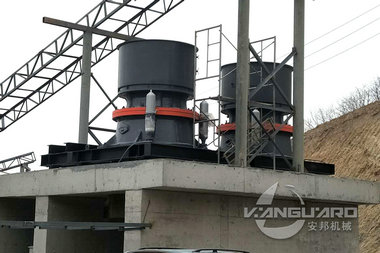

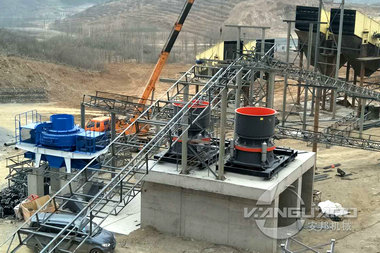

Product Album

Specifications - Technical Data

Model

 Power(kW)

Cavity Type

Max. Feed Size
(mm)

Throughput (t/h) if Crusher Running at  CSS (mm)

CH820

90



6

8

10

13

16

19

22

25

32

38

44

51

EC

135



55

100

105

115

120

130

145



C

90



60

405

110

120

125

135

80



M

65



50

85

90

90

70



MF

50

40

75

80

80

60



F

38

60

60

65

55

45



EF

28

30-40 with 80% less than 4.5-5.5mm







CH830







160



6

8

10

13

16

19

22

25

32

38

44

51

EC

190



125

170

185

196

210

240

240



C

145



85

150

165

175

185

200

225

170



MC

115



65

160

175

185

200

210

165



M

90



75

100

150

165

175

185

175

120



MF

75



70

120

130

145

145

130

105



F

50

90

95

100

110

120

120

110

90



EF

35

70-90 with 80% less than 5-5.6mm







CH840







250



6

8

10

13

16

19

22

25

32

38

44

51

EC

215



200

276

294

313

357

395

384



C

175



101

218

292

312

332

378

335

229



MC

140



122

262

282

301

320

328

242



M

110



187

278

298

318

339

281

194



MF

85



114

227

245

263

281

299

248



F

70



135

176

191

206

221

236

251

208



EF

38

100-125 with 80% less than 6-7.5mm







CH860







315



6

8

10

13

16

19

22

25

32

38

44

51

EC

275



177

338

436

464

547

605

662

511

C

215



190

367

480

501

582

643

512

353

MC

175



253

426

455

484

552

499

364



M

135



295

440

470

500

502

403



MF

115



192

369

396

423

450

451

363



F

85



304

328

352

376

400

401

323



EF

65



293

316

298

290









CH870







500



13

16

19

22

25

32

38

44

51

57

64

70

EC

300



588

849

968

1070

1172

1291

1393

1512

1331

C

240



406

636

893

1018

1125

1232

1357

1464

1461

1286

MC

195



440

723

837

954

1055

1155

1272

1373

1370

1206

M

155



563

786

836

953

1054

1154

1271

1372

1248

1098

MF

100



424

716

765

814

928

942

789

702



F

90

395

656

704

752

800

912

857

718



EF

80

517

558

598

639

680

775

128

669









CH880







750



13

16

19

22

25

32

38

44

51

57

64

70

EC

370



459

1309

1446

1584

1745

1883

2043

2181

C

330



397

774

1404

1552

1700

1873

2020

2193

2140

MC

300



513

852

1232

1404

1552

1700

1873

2020

2005

1739

M

230



312

670

951

1106

1261

1394

1526

1681

1814

1800

1564

MF

160

204

514

690

921

980

1117

1235

1352

1490

1607

1396

1170

F

120

289

669

838

895

952

1085

1165

1051

827

625





CH885



750



10

13

16

19

22

25

32

38

44

51

57

64

EFX

100



423

666

715

763

812

926

994

896

705

533



EF

85

246

585

631

678

724

770

878

970

1063

1170

1010

862

EEF

75

475

564

608

653

697

742

846

855

761

580

417



Model

Power(kW)

Cavity Type

 Max Feed Size (mm)

Nominal capacity in t/h with crusher  running at CSS (mm)



16

19

22

25

29

32

35

38

41

44

48

51

CS820

90

EC

240





110

123

142

151

145

132



C

200

77

85

105

110

131

133



CS830

160

EC

360





151

161

175

193

243

285

300

281

250

C

300







170

182

203

256

273

295

305

237
CS840 250   EC   450              273 323 345 356 421 447
C   400           291 335 363 395 415 421 375
CS850 315   EC   560               385 464 535 621 647
C   500             335 418 535 620 660 683
