LSX Series Sand Washer

LSX Series Sand Washer

Capacity:100-350T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Washing and selection of construction sites, sand and stone works, concrete dam sites of hydropower stations, metallurgy, building materials, hydropower and other industries.

Applicable Material

Limestone, river pebble, hillstone, lapis, cobblestone, weathered sand, basalt, granite, quartz, diabase,etc.

Overview

LSX Series Sand Washing Machine can clean and separate stone powder and clay in sand and stone. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It is an efficient sand washing equipment used with sand making machine. LSX Series Sand Washing Machine has two kinds of single-spin and double-spin, with high cleanliness, reasonable structure, large capacity, low power consumption, sand loss in the process of sand washing, especially the drive parts of sand washing machine are separated from water and sand, so its failure rate is much lower than the commonly used sand washing machine, is the best choice for upgrading the sand washing industry.

Features

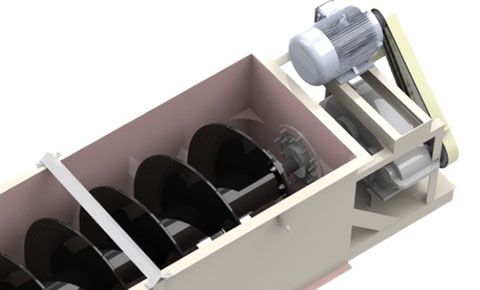

Helical Blade

This series of product can clean and separate mud and impurities from gravel, which is applied in sand using units such as roads, water conservancy, construction, etc. Cleaning and dehydration are completed well by novel sealing structure, adjustable weir plate, and reliable transmission device.

Transmission Device

Reliable transmission device makes sure the cleaning effect.

Energy-efficient

Greater capacity, smaller power consumption ,easier operation and maintenance and high efficiency.

Less Investment and High Benefit

Lower price than other series sand washing machine with the same capacity.


Learn More About LSX Series Sand Washer

When the sand washing machine is working, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand and stone feed trough enters the washing trough, rolls under the impeller's drive, and grinds each other to remove the impurities covering the sand and stone surface, and destroys the water vapor layer of the sand to facilitate dehydration. Strong water flow, timely impurities and small proportion of foreign bodies to take away, and from the overflow outlet flume discharge, to complete the cleaning effect. Clean sand and stone are taken away by the blade, and finally the sand and stone are poured into the discharge trough from the rotating impeller to complete the sand and stone cleaning.

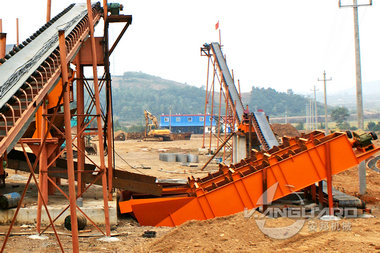

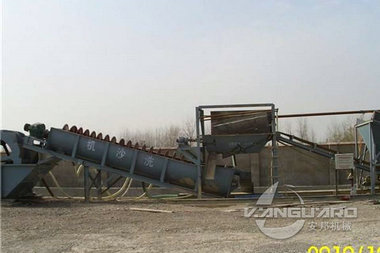

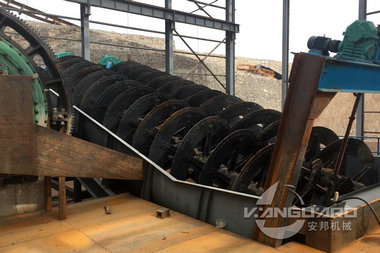

Product Album

Specifications - Technical Data

​  Model


Diameter  (mm)


Length  (mm)


Feed  size (mm)


Capacity  (t/h)


Speed  (r/min)


Power  (kW)


Water  (t/h)


Outer Dimension
(mm)


Weight  (t)

LSX920

915

7585

≤10

100

21

11

10-80

8420*2810*3960

6.3

2LSX920

915

7585

≤10

200

21

11*2

20-160

8420*3765*3960

11.1

LSX1120

1115

9782

≤10

175

17

15

20-150

10970*3945*4720

10.2

2LSX1120

1115

9782

≤10

350

17

15*2

40-300

10970*5250*4720

17.9
