Ball Mill

Ball Mill

Capacity:0.8-36T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Cement, portland products, new building materials, refractories, fertilizers, ferrous and nonferrous metal beneficiation and glass ceramics

Applicable Material

Limestone, calcite, fly ash, calcium carbide desulfurization, kaolin, calcium carbonate, coal gangue, gypsum, slag powder, slag powder, coal powder, bentonite, barite, marble, talc, refractories

Overview

Ball mill is the key equipment for deep grinding of materials after primary crushing. It is widely used in cement, silicate products, new building materials, wear-resistant materials, fertilizers, ferrous and non-ferrous metal mineral processing and glass ceramics industries. According to the processing technology, it is divided into two grinding ways-the dry and the wet. Besides, wet ball mill can be divided into tabular type and overflow type.

Features

Discharge port

Reasonable discharge port design, de-ironing separator could be set according to clients’s requirement.

High manganese steel plate

High manganese steel plate is more wear-resisting and it has longer service life.

Wheel gear

Pinion drives rack wheel rotating.

Reduction box

High quality and national standard reduction box.



Learn More About Ball Mill

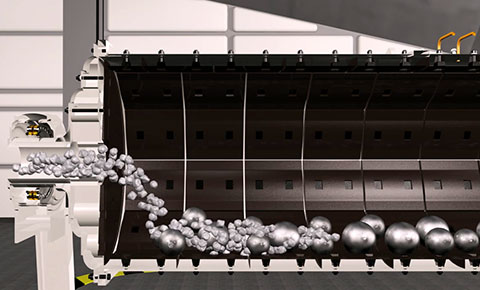

The material enters the first chamber of the mill uniformly through the hollow shaft of the feeding device. There are ladder lining plates or corrugated lining plates,steel balls of different specifications installed in chamber. The centrifugal force produced by the rotation of the cylinder brings the steel balls to a certain height and then falls down, which produces heavy impact and grinding effect on the material. After the material is roughly grinded in the first chamber, it enters the second through a single-layer baffle plate. This chamber is inlaid with a flat lining plate and a steel ball inside, which further grinds the materials. Finally, powder is discharged through the discharging grate plate, thus whole grinding process is completed.

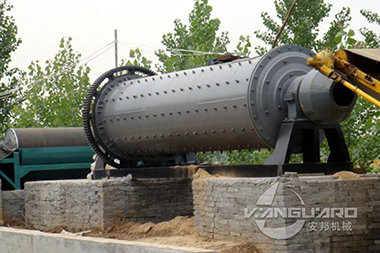

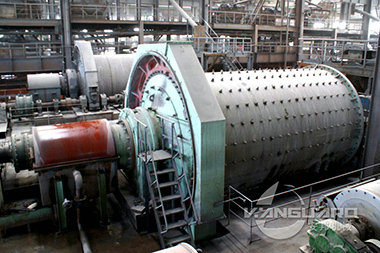

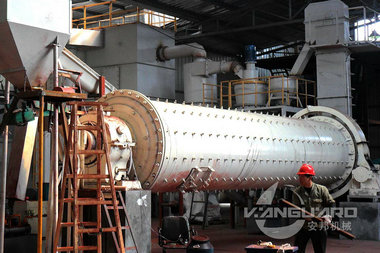

Product Album

Specifications - Technical Data

​Model Rotary Speed (r/min) Ball Weight(t) Feeding Size (mm) Output Size(mm) Capacity(t/h) Power(kW) Weight(t)
Φ900×3000 35.6 2.4 ≤25 0.075~0.89 0.8-2.5 22 5.3
Φ1200×3000 32.4 4.5 ≤25 0.074~0.4 1.6-3 37 12.1
Φ1200×4500 32.4 7 ≤25 0.074~0.4 1.83-3.9 55 13.1
Φ1500×3000 29.7 7.5 ≤25 0.074~0.4 2.8-4 75 14.8
Φ1500×4500 29.7 11 ≤25 0.074~0.4 4.8-7 110 19.9
Φ1500×5700 29.7 14 ≤25 0.074~0.4 5-8 130 23.4
Φ1500×7000 29.7 17 ≤25 0.074~0.4 6-8 155 27.5
Φ1830×3000 25.4 11 ≤25 0.074~0.4 4.5-10.5 130 26.6
Φ1830×4500 25.4 17 ≤25 0.074~0.4 6.8-11.5 155 30.4
Φ1830×6400 25.4 24 ≤25 0.074~0.4 7-12 210 32.3
Φ1830×7000 25.4 26 ≤25 0.074~0.4 7.8-13.8 245 34.2
Φ2100×3000 24.9 15 ≤25 0.074~0.4 5.8-14 210 32.3
Φ2100×4500 24.9 23 ≤25 0.074~0.4 9.5-18 245 40
Φ2400×3000 20.8 20 ≤25 0.074~0.4 7.8-18 245 51.3
Φ2400×4500 20.8 30 ≤25 0.074~0.4 13.7-28 380 63.7
Φ2700×4000 19.5 34 ≤25 0.074~0.4 15-28 475 89
Φ2700×4500 19.5 39 ≤25 0.074~0.4 16.5-36 475 97
