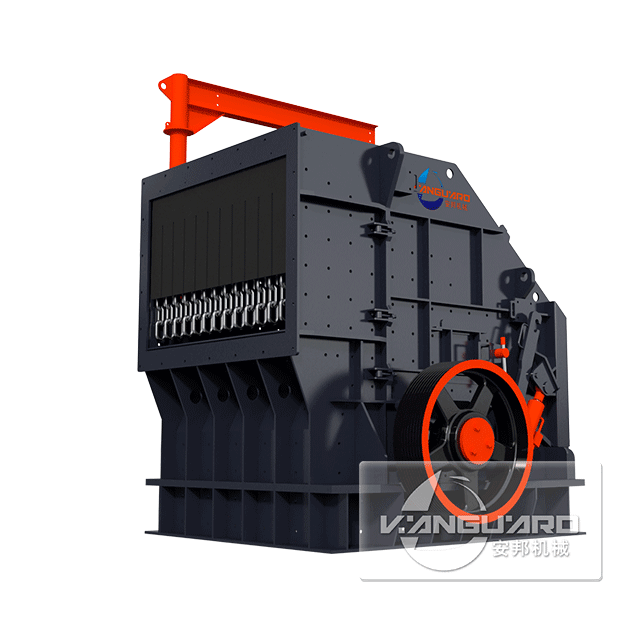

6FX Series Hydraulic Impact Crusher

6FX Series Hydraulic Impact Crusher

Capacity:70-900 T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

All kinds of ore crushing, railways, highways, energy, cement, chemicals, construction and other industries.

Applicable Material

Limestone, granite, marble, basalt, iron ore, river pebble, shale, lapis, coal, cobblestone, construction waste, etc.

Overview

6FX Series Hydraulic Impact Crusher is another new breakthrough in the field of mine crushing equipment by Vanguard's technical engineers.The impact crusher are designed for crushing particle sizes less than 700mm and compression strength no more than 360MPa. Compared with traditional impact crusher, its crushing ratio is greatly increased. By adjusting the special equipment can be freely converted between primary crushing and secondary crushing that guarantees the unique advantages of particle size and greatly increases the capacity, which is the most advanced crusher in the field of crushing equipment.

Features

 Full-automatic Hydraulic Adjuster

Adopting full-automatic hydraulic adjuster between rotor and impact plate enable discharging size to be adjusted flexibly.

Modular Designed Side Liner

 The side liner adopts modular design, the liner interchange so that the liner utilization rate reaches more than 75% rate is greatly improved.



Heavy-duty Rotor Design

Heavy-duty rotor design is more durable and bigger crushing force. Strict quality control, high stability and longer service life.

Hydraulic Opening And Closing And Hydraulic

The equipment maintenance is more user-friendly. The original 8 hour workload is reduce to the current 30 minutes, which greatly shortens the maintenance time and cost.


Learn More About 6FX Series Hydraulic Impact Crusher

The impact crusher uses impact energy to crush materials. When the machine works, driven by the motor, the rotor rotates at a high speed. When the material enters the plate hammer action zone, it impacts and crushes with the plate hammer on the rotor, and then it is thrown to the counterattack device to break again. Then it bounces back from the counter-attack lining plate to the plate hammer action zone to break again. This process would repeated and not stop until the final product to become required size, then discharged from the outlet. Adjusting the clearance between the counterattack rack and the rotor can achieve the purpose of changing the particle size and shape of the material.

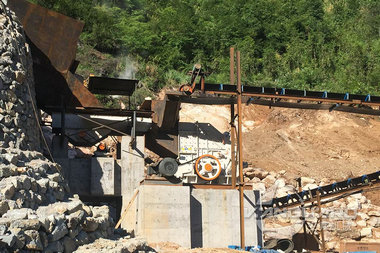

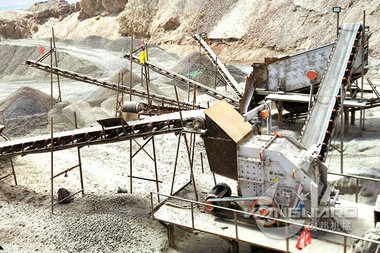

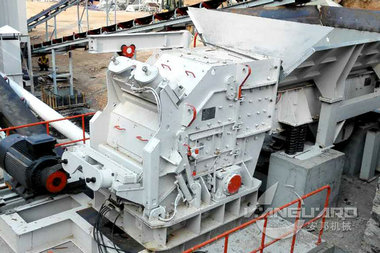

Product Album

Specifications - Technical Data


Model

Max. Feeding Size (mm)

Product Particle Size(mm)

Capacity (t/h)

Power(kW)

6FX1010

400×400×500

20-100

70-150

90-132

6FX1210

400×400×600

20-100

100-285

110-160

6FX1214

400×400×600

20-100

150-400

160-200

6FX1315

400×400×700

20-100

180-500

200-250

6FX1317

400×400×700

20-100

200-600

200-315

6FX1415

600×600×900

100-200

400-700

315-400

6FX1620

600×600×1000

100-200

600-900

400-500
