6CX Series European Type Jaw Crusher

6CX Series European Type Jaw Crusher

Capacity:65-1200T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Mining, smelting, building material, highway, railway, water conservancy and chemical industry, etc.

Applicable Material

Limestone, granite, marble, basalt, iron ore, cobble, shale, bluestone, coal, pebbles, construction waste

Overview

6CX series Jaw Crusher has adopted world' s most advanced crushing technology and research achievement; it is the new crushers with the world' s advanced level, which aresuccessfully developed by using finite element analysis method based on years' experience on jaw crusher design and manufacture.
Compared with traditional jaw crusher.6CX series Jaw Crushers pay more attention to the details of design and manufacture. Adopt high-strength material first-class manufacturing process, and the 6CX series Jaw Crushers provide the advantages of excellent strength structure reliable equipment, higher crushing ratio, larger capacity and lower cost.

Features

Larger Bearings Design

It adopts bigger bearings than those of standard series jaw crusher.

Increased Body Strength

The body strength is greater after optimizing.

Discharging Mouth of Wedge Type

The discharging mouth of hydraulic wedge type can adjust more safely, which makes operation and maintenance more convenient and efficient.

Wear-resisting Jaw Plate

Wear-resisting jaw plate leads to longer service life.



Learn More About 6CX Series European Type Jaw Crusher

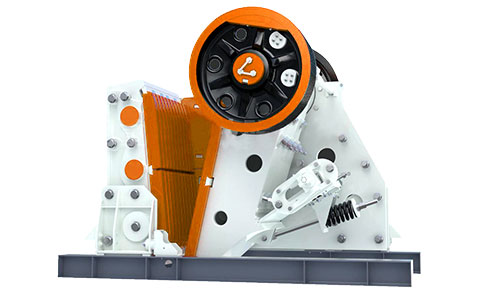

The structure of 6CX jaw crusher is mainly composed of frame, eccentric shaft, large belt wheel, flywheel, moving jaw, side plate, toggle plate, toggle plate back seat, adjusting screw (adjusting cylinder), reset spring, fixed jaw plate and movable jaw plate. The crushing mode of the jaw crusher is curved extrusion. The belt and pulley are driven by the motor. The jaw moves up and down by the eccentric shaft. The angle between the toggle plate and the movable jaw increases when the movable jaw rises, thus pushing the movable jaw plate closer to the fixed jaw plate. At the same time, the material is crushed, rubbed, rolled and so on. When traveling, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and spring. At this time, the crushed materials are discharged from the lower opening of the crushing chamber. With the continuous rotation of the motor, the crushing jaw is periodically crushed and discharged to realize batch production.

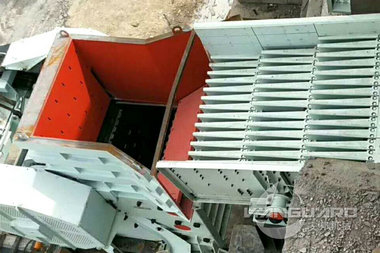

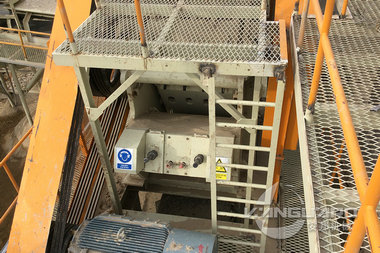

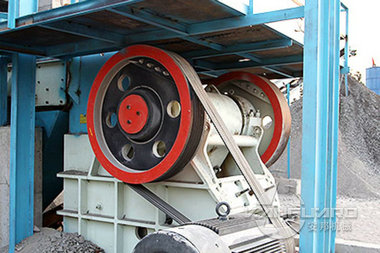

Product Album

Specifications - Technical Data

Model 6CX80 6CX100 6CX106 6CX110 6CX125 6CX140 6CX145 6CX160
The feeding mouth(mm) 800×510 1000×760 1060×700 1100×850 1250×950 1400×1070 1400×1100 1600×1200
Motor power(kw) 75 110(90) 110 132(160) 160(132) 200(160) 200 250(200)
Speed(rpm) 350 260 280 230 220 220 220 220
Fixed Jaw lenght(mm) 1100 1600 1450 1800 2000 2100 2300 2500

    Maintenance maximum weight(kg)

    (without the flywheel jaw assembly)

2870 7060 4020 9000 12960 15950 18600 21380

    Total weight(kg)

    (Do not include motor and accessories)

7520 20100 13500 25060 36700 45300 53800 68600
Width of feeding port(mm) 800 1000 1060 1100 1250 1400 1400 1600
Feed depth(mm) 510 760 700 850 950 1070 1100 1200
Product size(mm) Tight edge discharge port(mm) Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly Ton/hourly
0-30 20
0-35 25
0-45 30
0-60 40 65-85
0-75 50 80-95
0-90 60 95-125
0-105 70 115-150 150-210 155-200 190-250
0-120 80 130-170 170-225 175-230 210-275
0-135 90 150-195 190-245 200-260 235-305
0-150 100 165-215 215-280 220-290 255-330 290-380
0-185 125 210-275 265-345 280-365 310-405 350-455 385-500 400-520
0-225 150 250-325 315-410 335-435 370-480 410-535 455-590 470-610 520-675
0-260 175 290-380 370-480 390-510 425-550 470-610 520-675 540-700 595-775
0-300 200   420-545 445-580 480-625 530-690 590-765 610-795 675-880
0-340 225         590-770 655-850 680-885 750-975
0-375 250         650-845 725-945 750-975 825-1070
0-410 275             820-1070 900-1170
0-450 300
