5X Series Vertical Shaft Impact Crusher

5X Series Vertical Shaft Impact Crusher

Capacity:70-640T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Various metal and non-metallic minerals, cement, refractories, abrasives, glass raw materials, building aggregates, machine-made sand, metallurgy and other industries.

Applicable Material

Limestone, river pebble, hillstone, lapis, cobblestone, weathered sand, basalt, granite, quartz, diabase

Overview

5X series new sand making machine (centrifugal impact crusher) is widely used in various kinds of metal and non-metallic ores, cement, refractory matter, abrasives, glass raw materials, construction aggregate, machine-made sand, metallurgy and other industries. It is suitable for medium and fine crushing all kinds of ores and rocks with different hardness, such as iron ore, non-ferrous metal ore, corundum, bauxite, quartz sand, brown aluminum oxide, perlite, basalt and other high hardness materials.

Features

Motor

Standard, high-performance vertical motor.

Alloy Wear Resistant Block

Alloy wear-resistant block adoptes highly wear resistant and high temperature resistant materials in important U.S. industries and thus has a longer service life.

The New Impeller Design

Optimize material flow, increase production by 30%.

Feed Inlet Points Trays Design

Height can be adjusted to control the feed volume and different proportion of materials that are vertically into the impeller and scattered around of the impeller, to adjust the particle size ratio.


Learn More About 5X Series Vertical Shaft Impact Crusher

Material is divided into two parts by feeding hopper into sand-making machine, and one part by feeding hopper into high-speed rotating impeller, which is accelerated rapidly in impeller. The acceleration can reach hundreds of times of gravity acceleration. Then the material is ejected from the three uniformly distributed channels of impeller at the speed of 60-70 m/s. First of all, the material is ejected from the impeller. A part of the material collected and dropped around the distributor is impacted and broken, then impacted together on the material lining in the vortex support chamber, rebounded by the material lining, impacted obliquely upward to the top of the vortex chamber, and changed its direction of motion, turned downward to form a continuous material curtain. Such a piece of material is subjected to two or more probabilistic impacts, friction and grinding in the swirling crushing chamber. The crushing material is discharged from the lower discharge port. In the whole process of crushing, the materials impact and break each other, not directly contact with metal components, but with the material lining impact, friction and crushing, which reduces angle pollution, and prolongs the wear time of mechanical technology. The vortex flow inside the whirling chamber eliminates the dust pollution.

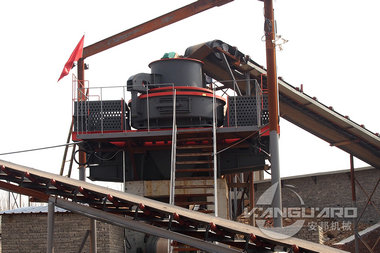

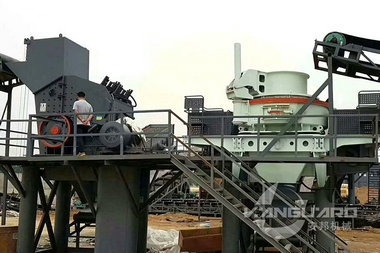

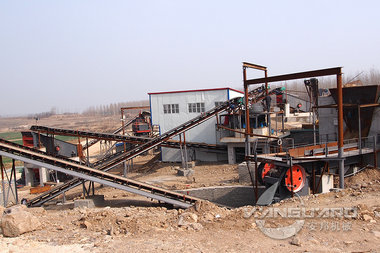

Product Album

Specifications - Technical Data

Model

5X7615

5X8522

5X9532

5X1145

Capacity (t/h)

Central Feeding
with Circular Cascade Feeding



150~280

240~380

350~540

500~640

Fully Central Feeding

70~140

120~200

180~280

250~360



Max. Feeding Size (mm)



Soft Material

<35

<40

<45

<50

Hard Material

<30

<35

<40

<45

Rotation Speed (r/min)

1700~1900

1500~1700

1300~1510

1100~1310

Double Motor Power (kW)

150

220

320

440

Overall Dimension LxWxH (mm)

4100×2300×2300

4140×2500×2700

4560×2600×2900

5100×2790×3320

Power Supply

380V,50Hz

Double Oil Oumps Motor’s Power (kW)

2x0.31

Thin Oil Lubrication Station

 Safty Assurance

Dual oil pump system stabilize oil supply; switch-off automatically without oil flow or oil pressure;

Air cooling system /water cooling system available; preheating-start engine adopted.

Power of Oil Tank Heater(kW)

2
