ZSW Series Vibrating Feeder

ZSW Series Vibrating Feeder

Capacity:90-900 T/H

Note: specific production capacity is based on customer site configuration and production capacity.

Application

Crushing and screening equipment in metallurgy, coal mine, mineral processing, building materials, chemical industry, abrasives and other industries.

Applicable Material

Limestone, granite, marble, basalt, iron ore, river pebble, shale, lapis, coal, cobblestone, construction waste, etc.

Overview

During production flow, the ZSW Vibrating Feeder makes the granule, block of raw material from hopper delivery to various sets evenly, timely and continuously. In a sand-stone production line, the machine can continuously convey the material to crushers and coarsely screen the materials. It is widely applied to the crushing-screening combination equipments in industries of metallurgy, coal dressing, ore dressing, building materials, chemical engineering, grinding materials, etc.

Features

Grate

Grate clearance is adjustable according to requirement, backplate is removable to simplify maintenance and lengthen service life.

Gear

High strength and high high precision gear make stable working of machine.

Motor

Famous motor brand, clients can choose Siemens brand.

Oil Quantity Display

Clients can check the position of lubricating oil.



Learn More About ZSW Series Vibrating Feeder

ZSW Vibrating Feeder is driven by eccentric shaft as exciting source, gear, low noise, stable operation, long life, and can screen fine materials in advance, so that the crusher efficiency is higher. Adjusting clearance bar design to prevent material clogging, customers can choose to install speed motor, easy to control the amount of feed, no need for frequent motor start.

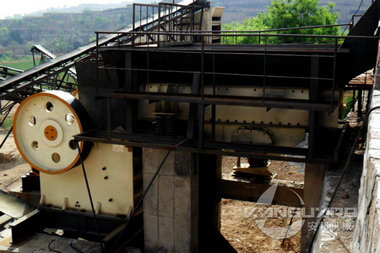

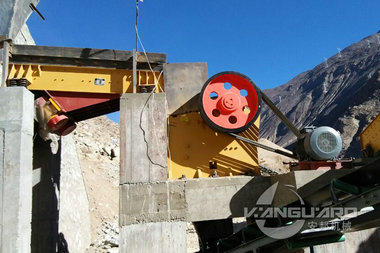

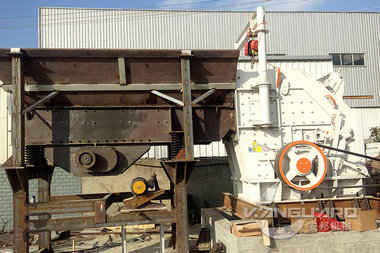

Product Album

Specifications - Technical Data

​ Model

Specification (mm)

Max. Feeding Size (mm)

Speed(rpm)

Throughput (t/h)

Power(kW)

Weight (kg)

ZSW3090

900x3000

400

600~850

90-180

11

3450

ZSW3896

960x3800

500

600~850

120-210

15

4450

ZSW4211

1100 x4200

650

600~850

180-400

15

4750

ZSW4911

1134x4960

650

600~850

250-480

22

5350

ZSW5911

1134x5960

600

600~851

300-550

22

6350

ZSW6013

1288x6000

750

600~850

340-600

30

6800

ZSW6015

1524x6000

1000

600~850

400-800

37

7050

ZSW6018

1804x6000

1000

600~850

450-900

37

8669
